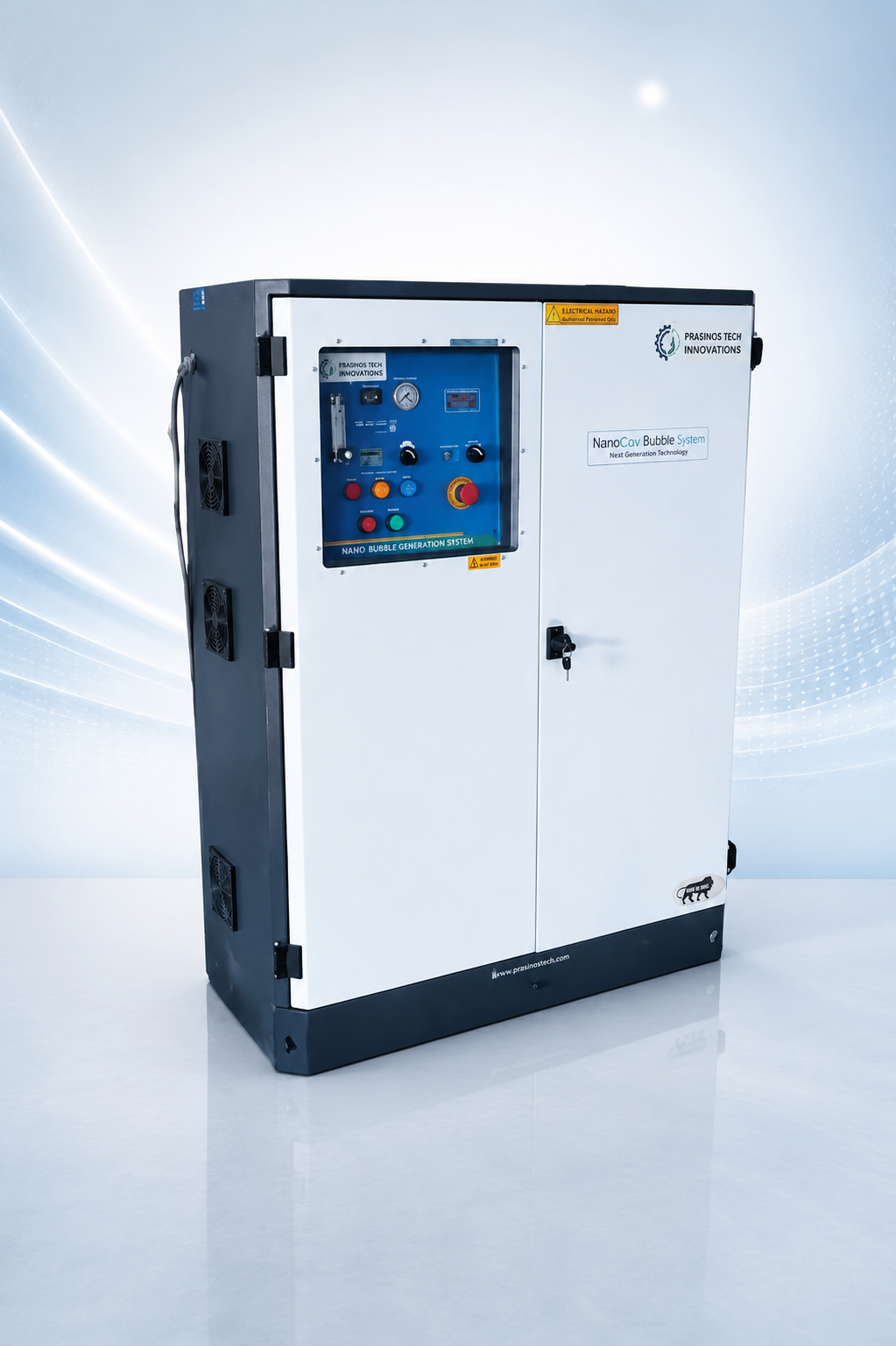

Powered by NanoCav CAS® – Prasinos Tech’s patented hydrodynamic cavitation aerator for high-efficiency gas-liquid mixing.
Technology
NanoCav CAS® harnesses hydrodynamic cavitation within a precisely engineered static chamber to create intense gas–liquid interaction.
As fluid accelerates through the system, controlled pressure differentials generate cavitation zones where gas is finely dispersed into stable micro and nanobubbles. This results in enhanced oxygen transfer, deeper penetration, and uniform mixing across the entire volume.
No moving parts. Just pure fluid dynamics working at peak efficiency.
Feel Free to Explore our other configuration of nanobubble system: NanoCav Aqua
Cost Efficient Operation
Optimized hydrodynamics ensure low energy consumption for aeration, while the absence of moving parts significantly reduces maintenance and lifecycle costs.
Flexible Aeration Control
Available in multiple configurations and capacities, NanoCav CAS® systems can be tailored to suit diverse treatment requirements across industries and scales.
3-in-1 Functionality
Combines aeration, mixing, and reagent dispersion in a single unit—enhancing process efficiency while reducing system complexity.
Plug & Play Design
Factory-tested, skid-mounted systems designed for quick installation and immediate operation with minimal on-site integration.
Reliable & Low Maintenance
Static design eliminates mechanical wear and ensures long-term, uninterrupted performance with minimal service requirements.
PERFORMANCE COMPARISON
| Parameter | Surface Aerator | Coarse Bubble Aerator | Fine Bubble Aerator | NanoCav® CAS |
|---|---|---|---|---|
| Standard Oxygen Transfer Efficiency (SOTE, %/m depth) | 1.2 – 1.8 %/m | 1.8 – 2.5 %/m | 4.0 – 6.5 %/m | 5.5 – 8.5 %/m |
| Oxygen Transfer Rate (OTR, kg O₂/kWh) | 1.2 – 1.8 | 1.5 – 2.2 | 2.0 – 3.0 | 2.8 – 4.2 |
| Alpha Factor (α, wastewater) | 0.6 – 0.75 | 0.65 – 0.80 | 0.4 – 0.65 | 0.75 – 0.90 |
| Oxygen Utilization Efficiency (%) | 10 – 20% | 20 – 35% | 35 – 55% | 50 – 75% |
| Power Consumption (kW/kg O₂ transferred) | 0.55 – 0.80 | 0.45 – 0.65 | 0.30 – 0.50 | 0.20 – 0.35 |
| Mixing Intensity (Turnover rate, per hr) | 0.5 – 1.0 | 1.0 – 2.0 | 0.3 – 0.8 (needs mixers) | 2.0 – 4.0 |
| Maintenance Frequency (major intervention) | Every 6–12 months | 12–18 months | 6–12 months (membrane cleaning/replacement) | 24–36 months |
| Diffuser Fouling / Efficiency Loss | N/A | <10% loss/year | 20–40% loss/year | <5% loss/year |
| Energy Savings vs Fine Bubble | — | — | Baseline | 15–30% lower |
| Total OPEX Reduction | — | — | Baseline | 25–45% lower |
| Treatment Capacity Increase | — | — | Baseline | 20–30% higher loading handling |
PRODUCT SPECIFICATIONS
NanoCav® CAS Series
| Model Name | CAS-20 | CAS-40 | CAS-60 | CAS-80 | CAS-100 |
|---|---|---|---|---|---|
| Water Flow Rate (m3/h) | 20 | 40 | 60 | 80 | 100 |
| Aeration Module | 1 | 1 | 1 | 2 | 1 |
| O₂ Transfer (KgO₂/h) | 3 | 4 | 6 | 8 | 10 |
| Recommended Tank Volume (m3) | 6 | 10 | 15 | 20 | 25 |
| COD Removal (Kg COD/day) | 108 | 144 | 216 | 288 | 360 |
Service and Installation
Across the Globe
We deliver end‑to‑end installation and post‑sales service worldwide. Our certified engineers operate 24/7, ensuring rapid deployment, continuous monitoring, and dependable long‑term performance.
Extended Warranty Up to 1 Year
Every Prasinos system is backed by an extended one-year warranty — engineered to protect your investment, ensure long-term reliability, and deliver peace of mind beyond standard coverage.
Glimpse
Explore real-world SwanCav® installations, commissioning activities, and operational performance across industries.

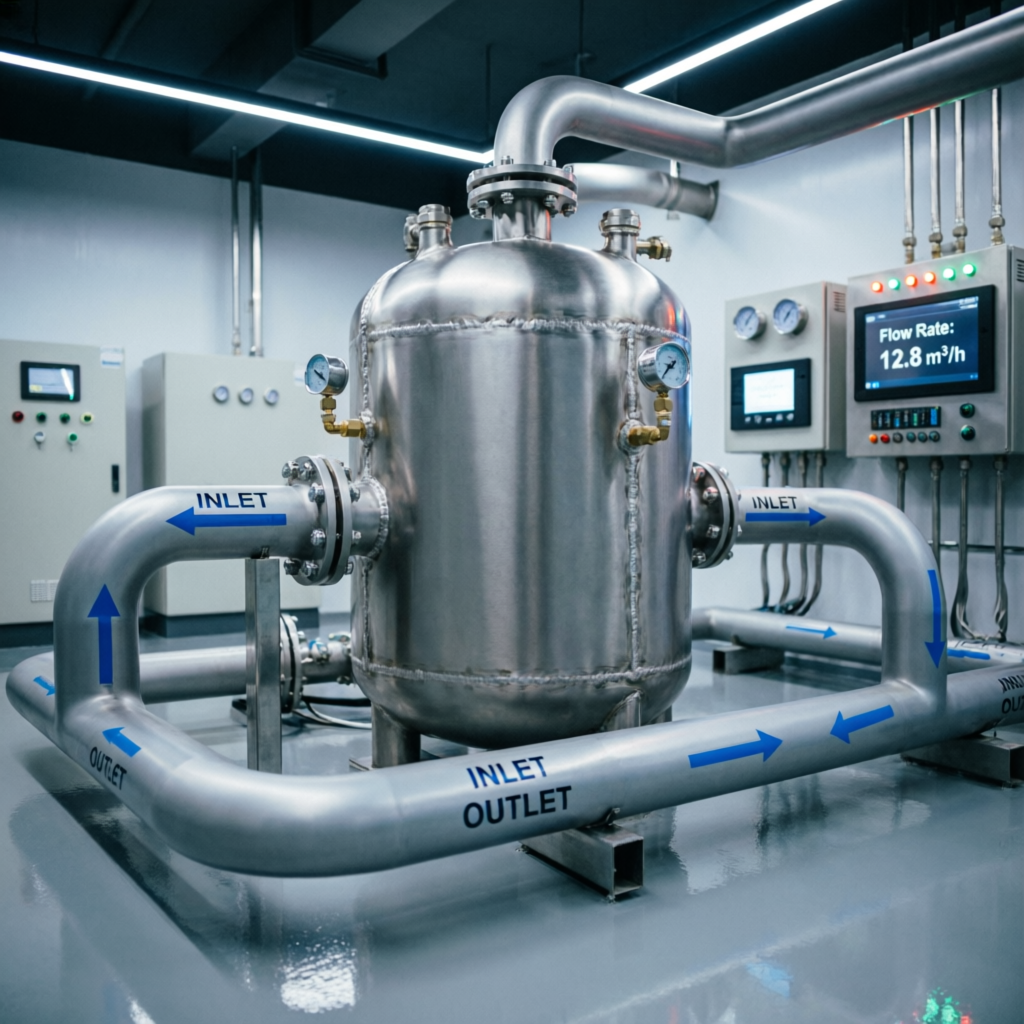

Watch our engineering team install the NanoCav AQUA® system at a major industrial facility, showcasing precision and efficiency.
See millions of nanobubbles being generated in real-time, demonstrating the superior oxygen transfer efficiency of our technology.

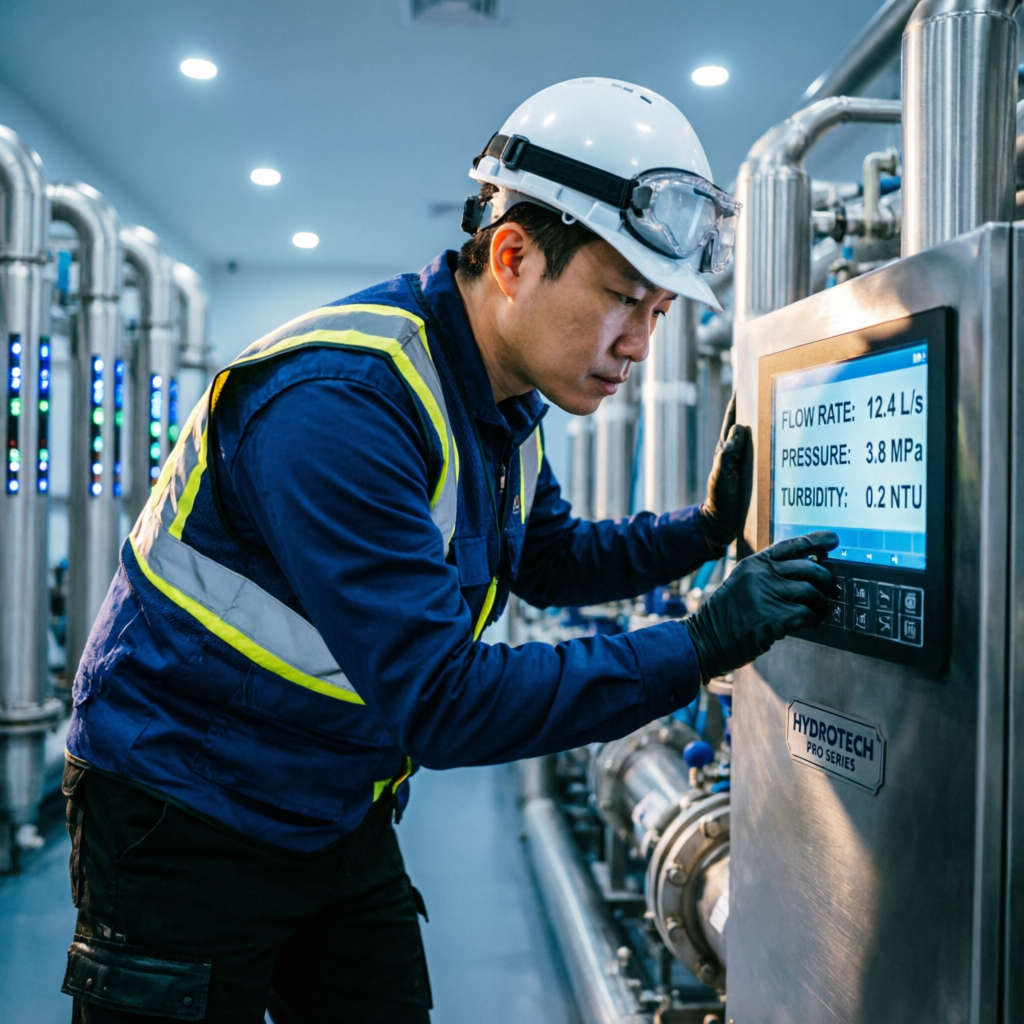

A detailed look at the commissioning phase, where our technicians calibrate systems and verify optimal performance parameters.
